Ceramic Inks for 3D Printing

Posted by Yissum - Research Development Company of the Hebrew UniversityResponsive · Innovative Products and Technologies · Israel

Summary of the technology

At a meeting on 11 May 2016 Shlomo said: there is a competeing research team that already published and thregfore we cannot re-file. However the research is not yet mature to be shown to companies and therefore there is no piont to prepare a summary at the moment.
Project ID : 9-2015-4244

Yissum - Research Development Company of the Hebrew University

Description of the technology

Keywords

Ceramic 3D object, polymerizable solutions

Current development stage

TRL7System prototype demonstration

Application

  • Current 3D printing processes for ceramic 3D structures is conducted mainly by printing an object, which is composed of a ceramic powder and an organic binder, then sintering the body at a high temperature (>1000 °C).
  • The current ceramic 3D-printing processes are mainly based on inks containing ceramic particles and require utilizing an ink with a high concentration of the dispersed ceramic particles. Such inks are turbid due to light scattering, having a critical negative effect on the light-induced polymerization process. In addition, Dispersion-based inks suffer from sedimentation of the dispersed particles, thus limiting the shelf-life.

Our Innovation

A novel and facile method for printing of ceramic 3D objects at low temperature, based on polymerizable solutions which obviate the use of particulate materials.

Advantages

  • Increases printing layer thickness and printing ink reactivity
  • Enables formation of transparent or opaque ceramic 3D objects or objects made of organic/ceramic hybrids with complex geometries
  • Enables tunable density and refractive indices for printed objects
  • Dramatically reduces the printing time
  • Simple and low cost process using a low-cost 3D printers at room temperature.
  • Enables formation of transparent objects, composed of inorganic materials such as fused silica

Technology

  • The new ceramic inks are composed of molecules that have both polymerizable groups (such as acrylates), ceramic forming groups (that are precursors that would lead to materials such as silica, zirconia, titania and alumina), and photoinitiators.
  • The transparent or semi-transparent ink formulations do not require dispersed ceramic particles.
  • Upon exposure to light at proper wavelength, a hybrid organic-inorganic 3D object is formed, that may be converted to a ceramic object by post heat treatment process

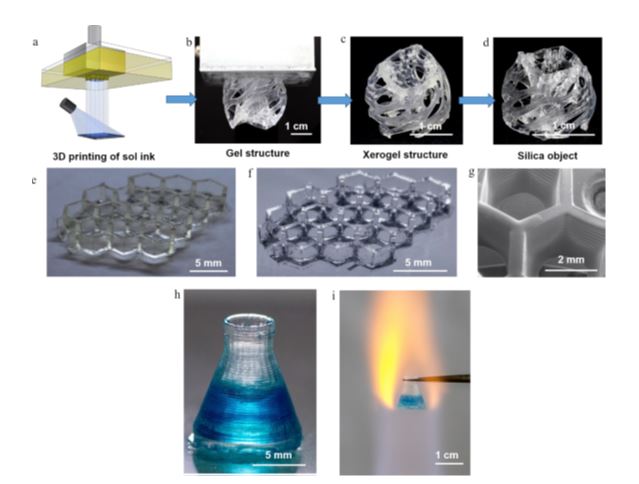

Figure 1 Scheme of the 3D printing and the obtained transparent silica glass objects, i.e., (a) printing of the sol gel ink by a DLP printer, (b−d) printed structures composed of 15 wt % S1 and 13.3 wt % of APTMS at different stages: (b) wet gel structure after printing, (c) dry structure after removal of the solvents (drying at 50 °C), (d) silica structure after burning the organic residues at 800 °C, (e−i) structures printed with ink composed of 15 wt % S1 and 5.3 wt % of APTMS that is (e) dry structure, and (f) transparent silica object after burning the organic residues at 800 °C, (g) environmental scanning electron microscopy (ESEM) image of the 3D printed silica object, (h) printed miniature Erlenmeyer filled with colored water, (i) Erlenmeyer under open flame. Photo from ACS Applied Materials & Interfaces, 18879–18885 (2018).

Opportunity

  • High quality 3D printed ceramic and organic-inorganic hybrid objects
  • 3D inks for transparent inorganic and hybrid objects.
  • Facilitate the fabrication of metal oxide structures that contain a variety of functional materials.
  • Various applications such as optical devices, complex and miniature reactors, microfluidic devices.

Project manager

Matt Zarek
SCOUTING, IDEATION, AND TECHNOLOGY EVALUATION

Project researchers

Shlomo Magdassi
HUJI, Faculty of Science
The Institute of Chemistry
