Barodome: Arrangement of Barometric Sensors and Machine Learning Based Force Inference Method

Summary of the technology

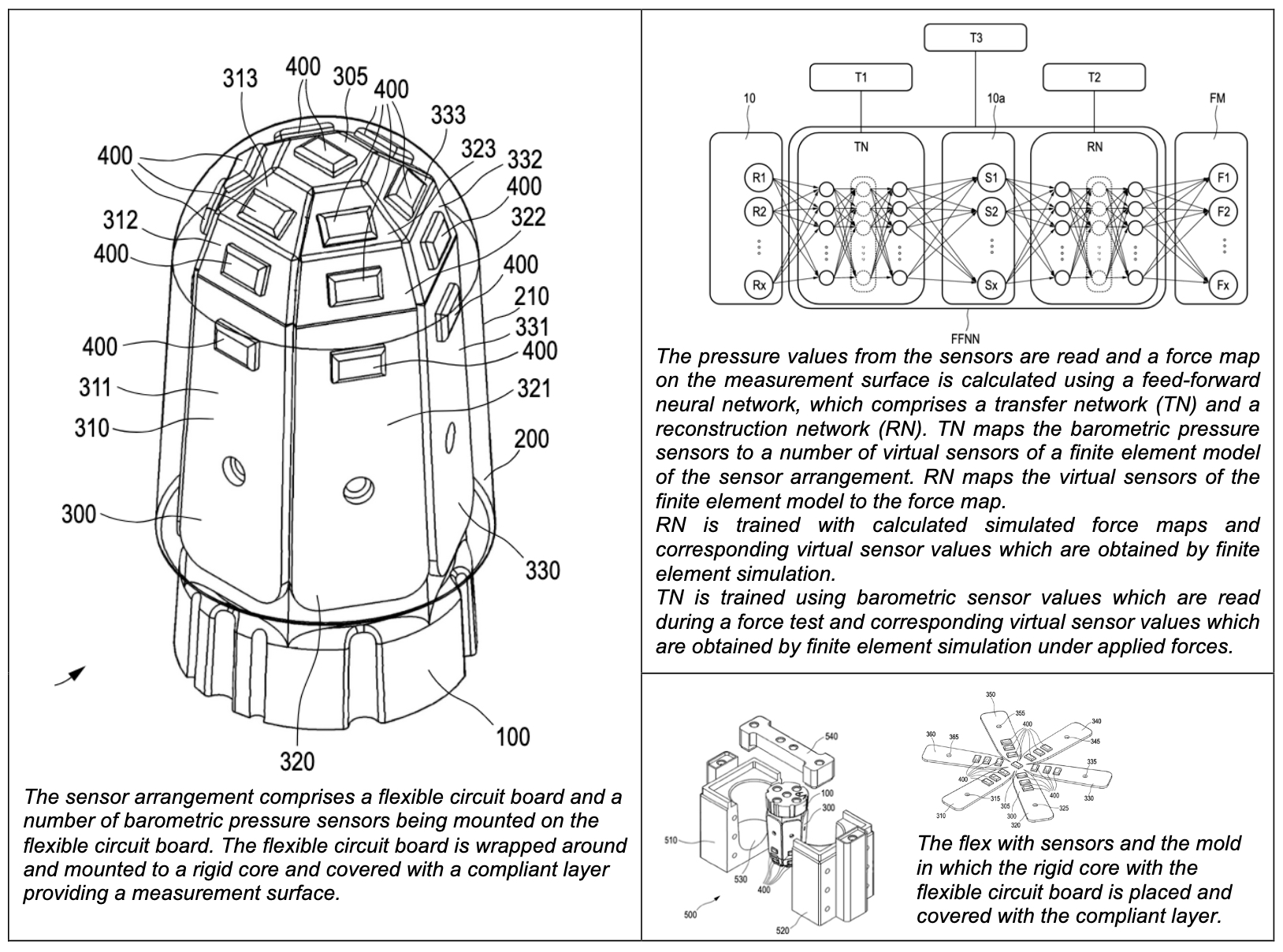

When developing applications such as robots, sensing of forces applied on a robot hand or another part of a robot such as a leg or a manipulation device is crucial in giving robots increased capabilities to move around and manipulate objects. We offer a complete low-cost sensor solution with the sensor arrangement, production method, the neural network and its training method.

Max-Planck-Innovation GmbH

Ref.-No.: 0104-5882-GÖ

When developing applications such as robots, sensing of forces applied on a robot hand or another part of a robot such as a leg or a manipulation device is crucial in giving robots increased capabilities to move around and manipulate objects. We offer a complete low-cost sensor solution with the sensor arrangement, production method, the neural network and its training method.

Applications and Advantages

  • Robot hands, legs and effectors
  • Low-Cost
  • Very high resolution thanks to the trained neural network

Patent Information

  • Sensor:PCT patent application PCT/EP2020/083260, regionalized & pending in EU, USA, CN, JP, KR
  • Force Inference:PCT patent application PCT/EP2020/083261, pending in EU, USA, CN, JP, KR

PDF Download

  • Ref.-No.: 0104-5882-GÖ (401.5 KiB)

    Gökçe Özyurt

    Patent- & License Manager

    Electronics Engineer (M.Sc. Econ.)

    Phone: +49 89 / 29 09 19-18
    Email: oezyurt@max-planck-innovation.de
